Engineering Drawing - Orthographic Projection - General Questions

-
1. The top, front, and bottom views align in this manner:
A.Horizontally
B.
Vertically@
C.According to the planar views
D.Parallel to the frontal plane

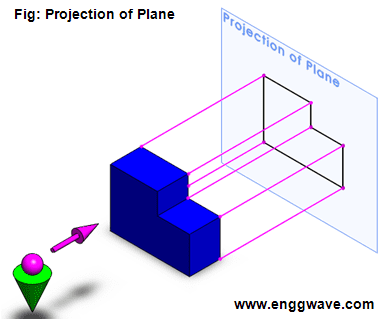

2. If a plane is parallel to the plane of projection, it appears:
A.
True size@
B.As a line or edge
C.Foreshortened
D.As an oblique surface
Image result for plane projection

3. This line pattern is composed of three dashes, one long dash on each end with a short dash in the middle:
A.Object
B.Hidden
C.
Center@
D.Phantom
Image result for center line


4. the plane upon which the top view is projected:
A.
Horizontal@
B.Frontal
C.Profile
D.Base

Image result for horizontal plane



5. An advantage of this type of view is that each view shows the object all the way through as if it were transparent:
A.Planar
B.Horizontal
C.Auxiliary
D.
Orthographic@
Image result for orthographic


6. This type of surface is tipped to all principal planes of projection and does not appear true size in any standard view:
A.Foreshortened
B.Parallel
C.Orthographic
D.
Oblique@
Image result for oblique projection
